Machine Setpoints Interface Accelerator

On this page

Overview​

The Machine Setpoints Interface Accelerator demonstrates a reference pattern for driving machine setpoints from Production Order metadata in Kanoa MES.

In many manufacturing environments, machine configuration and recipe values are determined upstream (ERP, planning systems, engineering definitions) and must be applied consistently at run start. Kanoa MES provides the tools to implement this cleanly, but the exact workflow—automatic vs operator-confirmed—varies by plant.

This accelerator demonstrates an operator-confirmed setpoint workflow using:

  • Production Order Metadata
  • Asset Custom Attributes
  • Custom Perspective views
  • A built-in Kanoa run-start hook (_runSetupViewPath)
  • Standard Ignition tag writes and Kanoa operational APIs

The result is a flexible, transparent pattern that can be adapted to many machine and recipe models.

How It Works​

This solution enables you to:

FeatureDesign
Attach machine setpoints to a specific work orderBy adding those values as Production Order Metadata named "Machine Setpoints"
Intercept run start to review setpointsBy using an asset’s _runSetupViewPath Asset Custom Attribute
Compare desired vs current machine valuesBy referencing a machine UDT instance via an Asset Custom Attribute
Commit setpoints to the machineBy writing to Ignition tags on operator confirmation
Start the run through standard Kanoa logicBy calling system.kanoa.event.assetOperationChange()

Kanoa MES Features Used​

Implementation & Configuration​

Included Resources​

This accelerator package contains:

Perspective Views​

ViewDescription
accelerators/setpoints/addSetpointsToOrderUtility screen to attach setpoint metadata to an order
accelerators/setpoints/mainRun-start popup used to review and commit setpoints
accelerators/setpoints/rowRow component used in the main view’s Flex Repeater

Machine Tag Model​

  • machineUDT.json — a sample machine UDT defining writable setpoint tags

Implementation​

Step 1 — Import the Views and Machine UDT​

Import the provided Perspective views and the machine UDT definition into your Ignition project.

Create an instance of the machine UDT to represent the machine you will be sending setpoints to.

This UDT can be connected to real PLC tags, a simulator, or a testing tag provider.

Step 2 — Configure the Asset’s Machine UDT Path​

On each asset that should support machine setpoints, add a Custom Attribute:

  • Name: machineUdtPath
  • Value: Tag path to the machine UDT instance

Example:

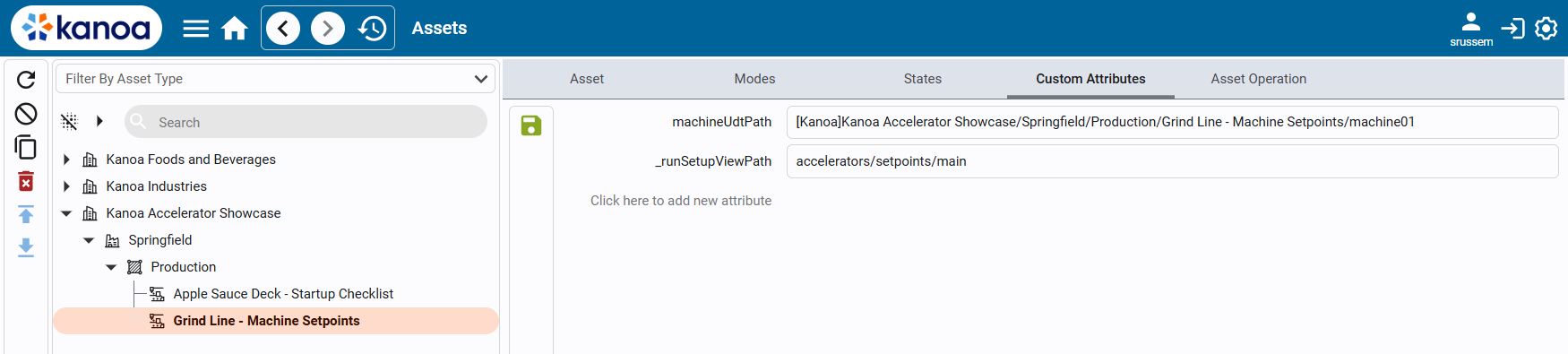

setpointCustomAttributes

This tells the setpoints popup which machine it should read from and write to.

Step 3 — Configure the Asset Hook (_runSetupViewPath)​

Configure the asset’s _runSetupViewPath Custom Attribute to:

accelerators/setpoints/main

This built-in Kanoa hook tells the system:

“When an operator presses Start Run, open this custom setpoints view instead of immediately starting the run.”

Step 4 — Attach Setpoint Metadata to a Work Order​

Machine setpoints are stored on the order as Production Order Metadata.

The accelerator uses the metadata Name "Machine Setpoints".

The value is a JSON object where keys correspond to machine tag names:

{
  "agitatorSpeed": 120,
  "mixingTime": 15.5,
  "jacketTemperature": 72,
  "torqueLimit": 40,
  "batchFillLevel": 0.85
}

You can add this metadata via script using system.kanoa.order.addProductionOrderMetaData or by using the included utility screen accelerators/setpoints/addSetpointsToOrder.

Step 5 — Run the Order and Commit Setpoints​

machineSetpointInterface
  1. Open the asset’s Run Control screen.
  2. Select a Production Order with Machine Setpoints metadata.
  3. Click Start Run.
  4. The Machine Setpoints popup will open instead of starting the run.
  5. Review the desired vs current setpoints.
  6. Click Send Setpoints to write values to the machine.
  7. Click Start Run to begin production.

Detailed Walkthrough​

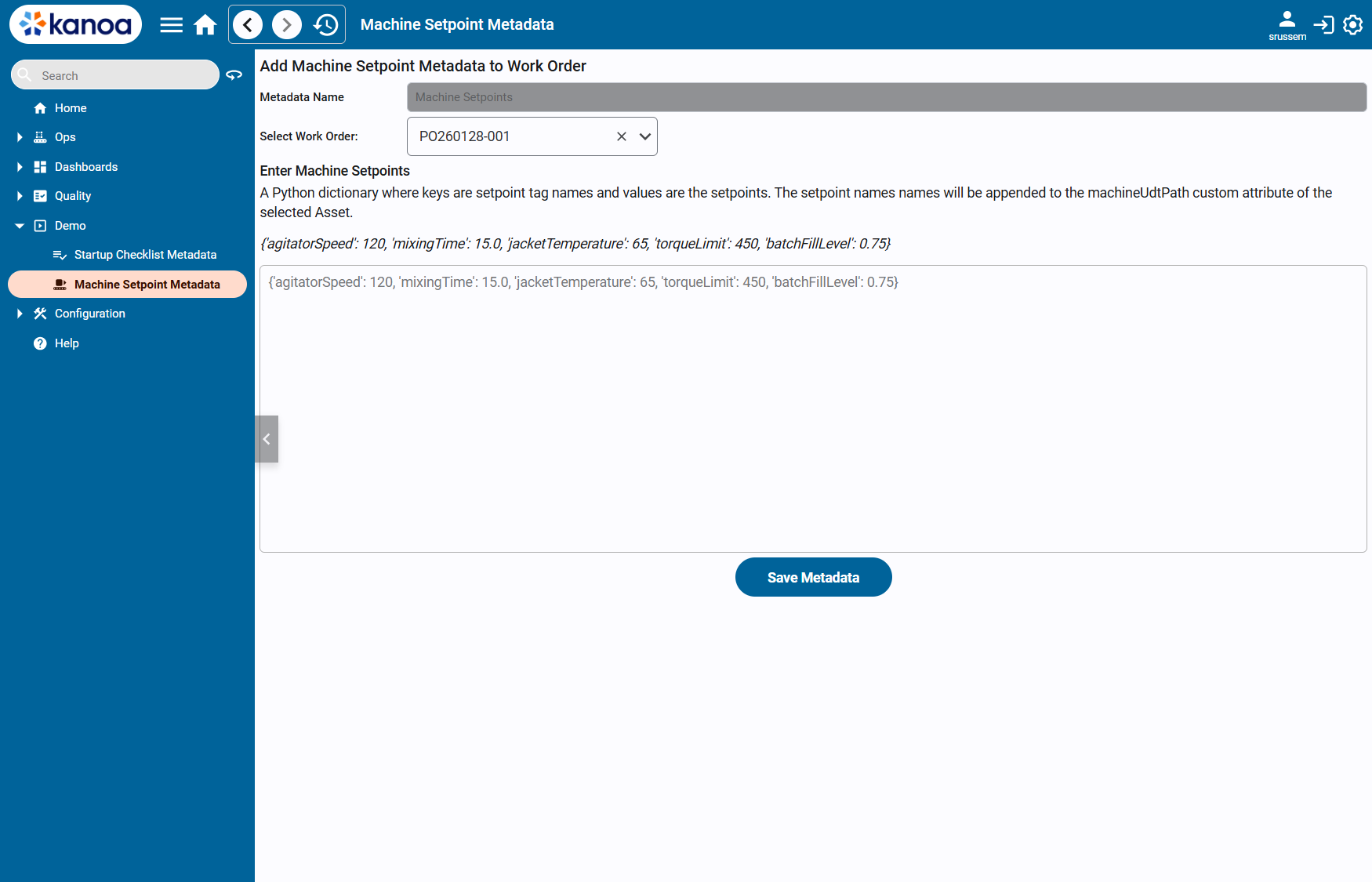

accelerators/setpoints/addSetpointsToOrder​

addSetpointsToOrder

Purpose​

Utility screen used to quickly attach or update machine setpoints on a Production Order, primarily for demos and non-ERP environments.

Key Features​

  • Select a Production Order
  • Enter setpoints as JSON
  • Save metadata directly onto the order

Implementation Details​

When Save is pressed, the view:

  • Validates the selected work order
  • Checks for existing "Machine Setpoints" metadata
  • Adds or updates the metadata value accordingly
  • Provides success or warning feedback

accelerators/setpoints/main​

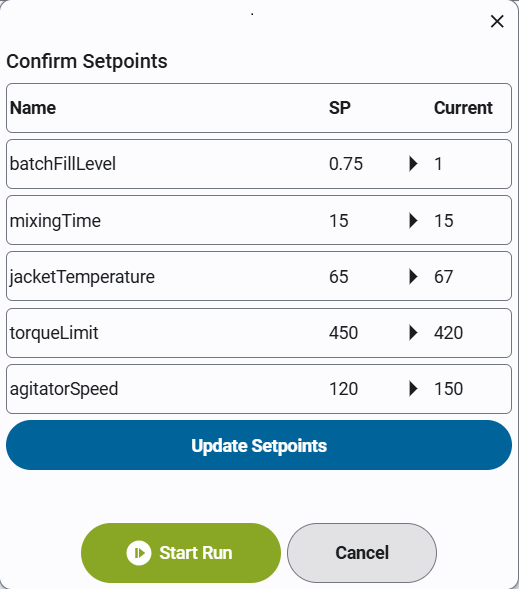

setpointsPopup

Purpose​

This is the primary run-start popup view launched via the asset’s _runSetupViewPath.

Responsibilities​

  • Resolve the target machine via machineUdtPath
  • Load current machine setpoint values
  • Load desired values from order metadata
  • Display a comparison table
  • Allow operators to commit setpoints
  • Start the run after confirmation

Setpoint Loading​

When opened, the view:

  • Reads workOrderId and assetId from popup parameters
  • Loads "Machine Setpoints" metadata from the order
  • Reads current values from the machine UDT instance
  • Builds a Flex Repeater dataset showing:
    • Setpoint name
    • Desired value
    • Current value

Operator Interaction​

  • Send Setpoints writes the desired values to machine tags using Ignition tag writes.
  • Start Run calls system.kanoa.event.assetOperationChange() to begin production.
  • Cancel closes the popup without writing or starting.

accelerators/setpoints/row​

Purpose​

Presentation-only row component used in the Flex Repeater.

Features​

  • Displays setpoint name, desired value, and current value
  • Supports a header row for column labels
  • Keeps all logic centralized in the main view

Binding Structure​

Each row expects:

  • label
  • setpointValue
  • currentValue
  • isHeader

Conclusion​

Common Use Cases​

This accelerator is useful for:

  • Recipe and setpoint-driven manufacturing
  • Operator-confirmed machine configuration
  • Reducing setup errors at run start
  • Demonstrating order-to-machine integration patterns
  • Building foundations for more advanced recipe management

Expansion Opportunities​

This accelerator can be extended to:

  • Automatically apply setpoints without operator confirmation
  • Add tolerance checks or validation rules
  • Highlight mismatches between desired and current values
  • Log setpoint application for auditability
  • Support recipe versions or approvals
  • Integrate with Kanoa Quality for specification enforcement

Summary​

The Machine Setpoints Interface Accelerator demonstrates a practical pattern for:

  • Driving machine configuration from order context
  • Using asset attributes to resolve machine targets
  • Injecting custom logic into the run-start workflow
  • Writing setpoints via Ignition tags
  • Starting production using standard Kanoa operational APIs

It is a clear example of how Kanoa MES can be extended to support plant-specific workflows while remaining aligned with core platform behavior.
